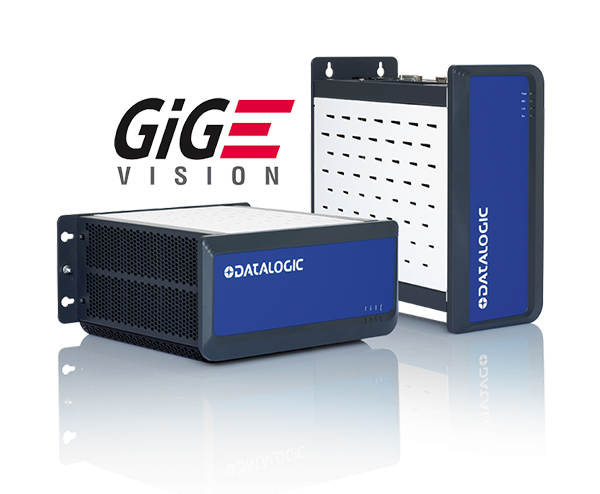

MX-E系列視覺處理器

所屬分類：視覺處理器
瀏覽次數：次
發布日期：2020-10-23 12:00:04

我要詢價

產品概述
性能特點
技術參數

信息

MX-E系列GigE視覺處理器具有卓異的計算能力和應用靈活性，確保了產品的長期可用性。高品質的硬件組件集成在堅固的機箱內，確保該系列視覺處理器堅固、耐用。多相機功能可以從多個點進行數據收集和分析，降低了集成成本。

根據應用要求提供三種不同的型號供客戶選擇，具有兩個或四個獨立的GigE 視覺相機端口，用于高速圖像采集：入門級，成本低廉的MX-E20支持兩個攝像機，中檔MX-E40和四核MX-E80支持兩個或四個攝像機。MX-E系列具有高的配置靈活性，提供多達10種不同的硬件配置選項，并與各種Gig-E相機完全兼容，從VGA到16MP分辨率(區域掃描)以及從2K到8K (線掃描)。

通用加密狗允許在所有MX-E和MX-U型號上提供IMPACT軟件許可證和附加許可證功能，允許用戶將許可證從一個視覺處理器移動和交換到另一個。

特點/優勢

l Windows Embedded Standard 7 (WES7)

l 多相機支持多點檢測

l 千兆以太網接口(GigE Vision)支持多相機組

l IMPACT軟件套件包括無數的應用程序

l 外置加密狗，更方便地進行軟件授權管理，且加密狗也可與MX-U系列處理器兼容

l 提供三種不同性能及數十種不同硬件配置視覺處理器型號供用戶選擇

產品序列提供以下型號：

產品訂貨號	產品描述
959912103	MX-E20-2-P-1, 2 ports, PNP, WES7*
959912104	MX-E20-2-N-1, 2 ports, NPN, WES7*
959914107	MX-E40-2-P-1, 2 ports, PNP, WES7
959914108	MX-E40-2-N-1, 2 ports, NPN, WES7
959914109	MX-E40-4-P-1, 4 ports, PNP, WES7
959914110	MX-E40-4-N-1, 4 ports, NPN, WES7
959918105	MX-E80-2-P-1, 2 ports, PNP, WES7
959918106	MX-E80-2-N-1, 2 ports, NPN, WES7
959918107	MX-E80-4-P-1, 4 ports, PNP, WES7
959918108	MX-E80-4-N-1, 4 ports, NPN, WES7
MX-E DONGLE**
93ACC0185	DONGLE, IMPACT
93ACC0186	DONGLE, IMPACT, OCR
93ACC0187	DONGLE, IMPACT, PST
93ACC0188	DONGLE, IMPACT, 3rd party camera
93ACC0189	DONGLE, IMPACT, OCR, 3rd party camera
93ACC0190	DONGLE, IMPACT, PST, 3rd party camera
93ACC0191	DONGLE, IMPACT, PST, OCR
93ACC0192	DONGLE, IMPACT, PST, OCR, 3rd party camera
E Series, GigE Area Scan Cameras
959933022	Camera, E101, Gig-E, 659 x 480, 300 FPS, Grayscale, 1/4" CMOS
959933023	Camera, E101C, Gig-E, 659 x 480, 300 FPS, Color, 1/4" CMOS
959933024	Camera, E151, Gig-E, 1280 x 1024, 75 FPS, Grayscale, 1/2" CMOS
959933025	Camera, E151C, Gig-E, 1280 x 1024, 75 FPS, Color, 1/2" CMOS
959933038	Camera, E182, Gig-E, 1600 x 1200, 60 FPS, Grayscale, 1/1.8" CMOS*
959933039	Camera, E182C, Gig-E, 1600 x 1200, 60 FPS, Color, 1/1.8" CMOS*
	(* Requires IMPACT Version 11.8 or greater)
M Series, GigE Area Scan Cameras
601-0351	Camera, M100, Gig-E, 659 x 494, 100 FPS, Grayscale, 1/4" CCD
601-0378	Camera, M100C, Gig-E, 659 x 494, 100 FPS, Color, 1/4" CCD
601-0423	Camera, M110, Gig-E, 659 x 494, 90 FPS, Grayscale, 1/3" CCD**
601-0424	Camera, M110C, Gig-E, 659 x 494, 90 FPS, Color, 1/3" CCD**
601-0450	Camera, M115, Gig-E, 659 x 494, 100 FPS, Grayscale, 1/2" CCD***
601-0451	Camera, M115C, Gig-E,659 x 494, 100 FPS, Color, 1/2" CCD***
601-0452	Camera, M125, Gig-E, 782 x 582, 75 FPS, Grayscale, 1/2" CCD***
601-0453	Camera, M125C, Gig-E, 782 x 582, 75 FPS, Color, 1/2" CCD***
601-0352	Camera, M150, Gig-E, 1296 x 966, 30 FPS, Grayscale, 1/3" CCD
601-0379	Camera, M150C, Gig-E, 1296 x 966, 30 FPS, Color, 1/3" CCD
601-0357	Camera, M180, Gig-E, 1628 x 1236, 20 FPS, Grayscale, 1/1.8" CCD
601-0384	Camera, M180C, Gig-E, 1628 x 1236, 20 FPS, Color, 1/1.8" CCD
601-0454	Camera, M190, Gig-E, 2048 x 1088, 50 FPS, Grayscale, 2/3" CMOS***
601-0455	Camera, M190C, Gig-E, 2048 x 1088, 50 FPS, Color, 2/3" CMOS***
601-0456	Camera, M195, Gig-E, 2048 x 2048, 25 FPS, Grayscale, 1" CMOS***
601-0457	Camera, M195C, Gig-E, 2048 x 2048, 25 FPS, Color, 1" CMOS***
959931010	Camera, M197, Gig-E, 2592 x 1944, 14 FPS, Grayscale, 1/2.5" CMOS****
959931011	Camera, M197C, Gig-E, 2592x1944, 14 FPS, Color, 1/2.5" CMOS****
601-0358	Camera, M200, Gig-E, 659 x 494, 70 FPS, Grayscale, 1/3" CCD
601-0385	Camera, M200C, Gig-E, 659 x 494, 70 FPS, Color, 1/3" CCD
601-0359	Camera, M202, Gig-E, 659 x 494, 79 FPS, Grayscale, 1/2" CCD
601-0386	Camera, M202C, Gig-E, 659 x 494, 79 FPS, Color, 1/2" CCD
601-0362	Camera, M250, Gig-E, 1296 x 966, 32 FPS, Grayscale, 1/3" CCD
601-0389	Camera, M250C, Gig-E, 1296 x 966, 32 FPS, Color, 1/3" CCD
601-0420	Camera, M295, Gig-E, 1628 x 1236, 28 FPS, Grayscale, 1/1.8" CCD*
601-0421	Camera, M295C, Gig-E, 1628 x 1236, 28 FPS, Color, 1/1.8" CCD*
601-0354	Camera, M300, Gig-E, 648 x 488, 210 FPS, Grayscale, 1/3" CCD
601-0381	Camera, M300C, Gig-E, 648 x 488, 210 FPS, Color, 1/3" CCD
601-0364	Camera, M330, Gig-E, 1004 x 1004, 60 FPS, Grayscale, 2/3" CCD
601-0391	Camera, M330C, Gig-E, 1004 x 1004, 60 FPS, Color, 2/3" CCD
601-0365	Camera, M350, Gig-E, 1608 x 1208, 35 FPS, Grayscale, 1" CCD
601-0392	Camera, M350C, Gig-E, 1608 x 1208, 35 FPS, Color, 1" CCD
601-0355	Camera, M390, Gig-E, 2448 x 2050 (5MP), 17 FPS, Grayscale, 2/3" CCD
601-0382	Camera, M390C, Gig-E, 2448 x 2050 (5MP), 17 FPS, Color, 2/3" CCD
959931002	Camera, M565, Gig-E, 2048 Linescan, 51KHz, Grayscale*
959931003	Camera, M570, Gig-E, 4096 Linescan, 26KHz, Grayscale*
959933020	Camera, M575, Gig-E, 6144 Linescan, 17KHz, Grayscale**
959933021	Camera, M580, Gig-E, 8192 Linescan, 12KHz, Grayscale**
I/O Cables, MX-E and MX-U Series (37 Pin D-Sub)
606-0675-.75		Cable, I/O, MX-E and MX-U Series, Processor to Terminal Block, .75 Meter
606-0675-1.5		Cable, I/O, MX-E and MX-U Series, Processor to Terminal Block, 1.5 Meter
606-0675-3		Cable, I/O, MX-E and MX-U Series, Processor to Terminal Block, 3 Meter
606-0675-4.5		Cable, I/O, MX-E and MX-U Series, Processor to Terminal Block, 4.5 Meter
606-0675-7.5		Cable, I/O, MX-E and MX-U Series, Processor to Terminal Block, 7.5 Meter
95A906060		Cable, I/O, MX-E and MX-U Series, Processor to Terminal Block, 15 Meter
I/O and Power Cables, M, E and U Series Cameras (Hirose to D-Sub Style Connector)
606-0674-02		Cable, M1xx, M5xx, U1xx and E1xx Camera, I/O, 6 pin, 2 Meter, Camera to Terminal Block
606-0674-03		Cable, M1xx, M5xx, U1xx and E1xx Camera, I/O, 6 pin, 3 Meter, Camera to Terminal Block
606-0674-05		Cable, M1xx, M5xx, U1xx and E1xx Camera, I/O, 6 pin, 5 Meter, Camera to Terminal Block
606-0674-10		Cable, M1xx, M5xx, U1xx and E1xx Camera, I/O, 6 pin, 10 Meter, Camera to Terminal Block
606-0674-15		Cable, M1xx, M5xx, U1xx and E1xx Camera, I/O, 6 pin, 15 Meter, Camera to Terminal Block
606-0674-20		Cable, M1xx, M5xx, U1xx and E1xx Camera, I/O, 6 pin, 20 Meter, Camera to Terminal Block
606-0673-02		Cable, M2xx, M3xx and M5xx Camera, Power and I/O, 12 pin, 2 Meter, Camera to Terminal Block
606-0673-03		Cable, M2xx, M3xx and M5xx Camera, Power and I/O, 12 pin, 3 Meter, Camera to Terminal Block
606-0673-05		Cable, M2xx, M3xx and M5xx Camera, Power and I/O, 12 pin, 5 Meter, Camera to Terminal Block
606-0673-10		Cable, M2xx, M3xx and M5xx Camera, Power and I/O, 12 pin, 10 Meter, Camera to Terminal Block
606-0673-15		Cable, M2xx, M3xx and M5xx Camera, Power and I/O, 12 pin, 15 Meter, Camera to Terminal Block
I/O and Power Cables, M, E and U Series Cameras (Unterminated)
606-0672-02		Cable, M1xx, M5xx, U1xx and E1xx Camera, I/O, 6 pin, 2 Meter, pigtail
606-0672-03		Cable, M1xx, M5xx, U1xx and E1xx Camera, I/O, 6 pin, 3 Meter, pigtail
606-0672-05		Cable, M1xx, M5xx, U1xx and E1xx Camera, I/O, 6 pin, 5 Meter, pigtail
606-0672-10		Cable, M1xx, M5xx, U1xx and E1xx Camera, I/O, 6 pin, 10 Meter, pigtail
606-0671-02		Cable, M2xx, M3xx and M5xx Camera, Power and I/O, 12 pin, 2 Meter, pigtail
606-0671-03		Cable, M2xx, M3xx and M5xx Camera, Power and I/O, 12 pin, 3 Meter, pigtail
606-0671-05		Cable, M2xx, M3xx and M5xx Camera, Power and I/O, 12 pin, 5 Meter, pigtail
606-0671-10		Cable, M2xx, M3xx and M5xx Camera, Power and I/O, 12 pin, 10 Meter, pigtail
606-0671-15		Cable, M2xx, M3xx and M5xx Camera, Power and I/O, 12 pin, 15 Meter, pigtail
I/O Boards (MX-E and MX-U Series Vision Processor)
248-0110		I/O Board, MX-E and MX-U Series Processors, Female DB37, DIN Rail Mountable, no isolation
661-0403		I/O Board, MX Series External I/O terminal Block, DIN Rail Mountable, with isolation*
I/O Boards (M, E and U Series Camera)
248-0140		I/O Board, M1xx, E1xx and U1xx Camera, 1 Input / 1 Output, Female DB9, DIN Rail Mountable, no isolation
661-0399		I/O Board, M1xx, E1xx and U1xx Camera, w / isolation
248-0141		I/O Board, M2xx and M3xx Cameras, Female HD15, DIN Rail Mountable, no isolation
661-0400		I/O Board, M2xx, M3xx, & Aviator Camera, w / isolation
661-0401		I/O Board, M5xx Camera, w / isolation
661-0402		I/O Board, JAI Camera, w / isolation
248-0136		I/O Board, Standard, Female HD15, DIN Rail Mountable
248-0142		I/O Board, Female DB9, DIN Rail Mountable, no isolation
Camera Brackets for M1xx, M2xx, M3xx, E1xx and U1xx Cameras
95A903029		Camera Mount, M1xx, E1xx and U1xx Camera
381-1355		Camera Mount, M1xx and E1xx Cameras
381-1354		Camera Mount, M2xx and M3xx Cameras
Ethernet Cables, Standard Gig-E Cables
606-0677-02		Cable, Gig-E, CAT6, 2 Meter
606-0677-03		Cable, Gig-E, CAT6, 3 Meter
606-0677-05		Cable, Gig-E, CAT6, 5 Meter
606-0677-07		Cable, Gig-E, CAT6, 7 Meter
606-0677-10		Cable, Gig-E, CAT6, 10 Meter
606-0677-15		Cable, Gig-E, CAT6, 15 Meter
606-0677-25		Cable, Gig-E, CAT6, 25 Meter
606-0677-50		Cable, Gig-E, CAT6, 50 Meter
Licenses, MX-E Series Processors
95A906545		License, Pattern Sorting Tool, Processor*
95A906541		License, OCR, 1 Camera Processor
95A906542		License, OCR, 2 Camera Processor
95A906543		License, OCR, 3 Camera Processor
95A906544		License, OCR, 4 Camera Processor
95A906539		License, 3rd Party Cameras, Processor*
