M系列專業相機

所屬分類：工業相機
瀏覽次數：次
發布日期：2020-10-23 12:01:57

我要詢價

產品概述
性能特點
技術參數

信息

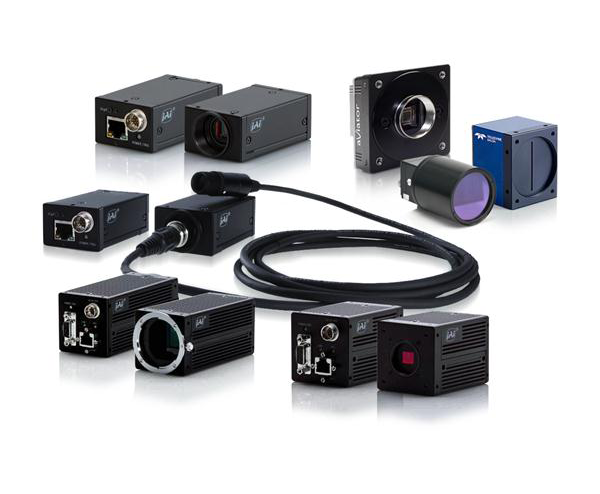

M系列專業相機支持如今復雜的高速、高質量的檢查和測量的視覺要求。這些GigE視覺兼容型代表了行業的最尖端的相機技術,采用IMPACT軟件和特殊的工程技術經驗來為全球的客戶提供支持、服務。MX系列專業相機很容易地集成加上MX系列處理器的嵌入式系統能擴展應用場景。

特點/優勢

? 1K到4K灰階掃描相機
? IP67等級相機
? 3CCD彩色相機
? 紫外線敏感相機
? 遠程頭相機
? 8和16百萬像素相機

應用

? Web檢驗
? 應用在嚴酷的環境下(例如:食品和飲料、制藥)
? 高分辨率彩色和灰階的應用程序
? 應用程序與設備可用于狹窄的空間

產品序列提供以下型號：

產品訂貨號	產品描述
601-0428	Camera, Gig-E, 1Kx1K, 100fps, Monochrome, 1/2"
601-0429	Camera, Gig-E, 1Kx1K, 100fps, Color, 1/2"
601-0430	Camera, Gig-E, 1600x1200, 50fps, Monochrome, 2/3"
601-0431	Camera, Gig-E, 1600x1200, 50fps, Color, 2/3"
601-0432	Camera, Gig-E, 1920x1080, 50fps, Monochrome, 2/3"
601-0433	Camera, Gig-E, 1920x1080, 50fps, Color, 2/3"
601-0434	Camera, Gig-E, 2330x1750, 25fps, Monochrome, 1"
601-0435	Camera, Gig-E, 2330x1750, 25fps, Color, 1"
601-0425	Camera, Gig-E, 3CCD Color, 1620 x 1236, 1/1.8" CCD, 15FPS
601-0449	Camera, Gig-E, 3CCD Color, 1392 x 1040, 1/2" CCD, 20FPS
601-0415	Camera, Gig-E, UV Sensitive, 1380 x 1040, 16FPS, Grayscale, 1/2" CCD
601-0414	Camera, Gig-E, Remote Head, 656 x 494, 120 FPS, Grayscale, 1/3" CCD
601-0437	Camera, Gig-E, IP67, 640x480, 124fps, Monochrome, 1/3"
601-0438	Camera, Gig-E, IP67, 640x480, 125fps, Monochrome, 1/2"
601-0439	Camera, Gig-E, IP67, 640x480, 150fps, Monochrome, 1/4"
601-0440	Camera, Gig-E, IP67, 780x580, 86fps, Monochrome, 1/2"
601-0441	Camera, Gig-E, IP67, 1024x768, 47fps, Monochrome, 1/3"
601-0442	Camera, Gig-E, IP67, 1280x960, 30fps, Monochrome, 1/3"
601-0443	Camera, Gig-E, IP67, 1360x1024, 25fps, Monochrome, 1/2"
601-0444	Camera, Gig-E, IP67, 1360x1024, 34fps, Monochrome, 2/3"
601-0445	Camera, Gig-E, IP67, 1600x1200, 26fps, Monochrome, 1/1.8"
601-0446	Camera, Gig-E, IP67, 2448x2050, 10fps, Monochrome, 2/3"
601-0458	Camera, Gig-E, IP67, 640x480, 124fps, Color, 1/3"
601-0459	Camera, Gig-E, IP67, 640x480, 125fps, Color, 1/2"
601-0460	Camera, Gig-E, IP67, 640x480, 150fps, Color, 1/4"
601-0461	Camera, Gig-E, IP67, 780x580, 86fps, Color, 1/2"
601-0462	Camera, Gig-E, IP67, 1024x768, 47fps, Color, 1/3"
601-0463	Camera, Gig-E, IP67, 1280x960, 30fps, Color, 1/3"
601-0464	Camera, Gig-E, IP67, 1360x1024, 25fps, Color, 1/2"
601-0465	Camera, Gig-E, IP67, 1360x1024, 34fps, Color, 2/3"
601-0466	Camera, Gig-E, IP67, 1600x1200, 26fps, Color, 1/1.8"
601-0467	Camera, Gig-E, IP67, 2448x2050, 10fps, Color, 2/3"
959982002	Camera, GigE, Linescan, 1K, 36 KHz, M42x1, C, F, Greyscale, 14 um pixel
959982003	Camera, GigE, Linescan, 1K, 68 KHz, M42x1, C, F, Greyscale, 14 um pixel
959982004	Camera, GigE, Linescan, 2K, 18 KHz, M42x1, C, F, Greyscale, 14 um pixel
959982005	Camera, GigE, Linescan, 2K, 36 KHz, M42x1, C, F, Greyscale, 14 um pixel
959982001	Camera, GigE, Linescan, 4K, 18 KHz, M58x0.75, F, Greyscale, 10 um pixel

以下附件可用于簡化安裝和優化產品性能：

產品訂貨號	產品描述
661-0400	I/O Board, M2XX, M3XX, & Aviator Camera, w / isolation
606-0673-02	Cable, Camera Power and I/O, M2xx and M3xx, 12 pin, 2 Meter, Camera to Terminal Block
606-0673-03	Cable, Camera Power and I/O, M2xx and M3xx, 12 pin, 3 Meter, Camera to Terminal Block
606-0673-05	Cable, Camera Power and I/O, M2xx and M3xx, 12 pin, 5 Meter, Camera to Terminal Block
606-0673-10	Cable, Camera Power and I/O, M2xx and M3xx, 12 pin, 10 Meter, Camera to Terminal Block
661-0402	I/O Board, JAI Camera, w / isolation
601-0447	SVS-TUBE-IP67-47-50-AR : Anti-Reflective coated optical glass window
95A906123	SVS-TUBE-IP67-47-50-IRCUT : IR-Cut filter window
95A906124	SVS-TUBE-IP67-47-50-POLY : AR-coated Polycarbonate window
606-0685-0.5	Cable, Power and I/O for SVS Visteks Camera, .5 Meter
606-0685-01	Cable, Power and I/O for SVS Visteks Camera, 1 Meter
606-0685-1.5	Cable, Power and I/O for SVS Visteks Camera, 1.5 Meter
606-0685-03	Cable, Power and I/O for SVS Visteks Camera, 3 Meter
606-0685-05	Cable, Power and I/O for SVS Visteks Camera, 5 Meter
606-0686-02	Cable, Ethernet, SVS Vistek Camera, 2 meter
606-0686-05	Cable, Ethernet, SVS Vistek Camera, 5 meter
606-0686-10	Cable, Ethernet, SVS Vistek Camera, 10 meter
606-0686-15	Cable, Ethernet, SVS Vistek Camera, 15 meter
95A906062	M58 to F-Mount Adapter (4K)
95A906063	M42 to F-Mount Adapter (1 & 2K)
95A906064	M42 to C-Mount Adapter (1 & 2K)
606-0569-xx	Cable,
